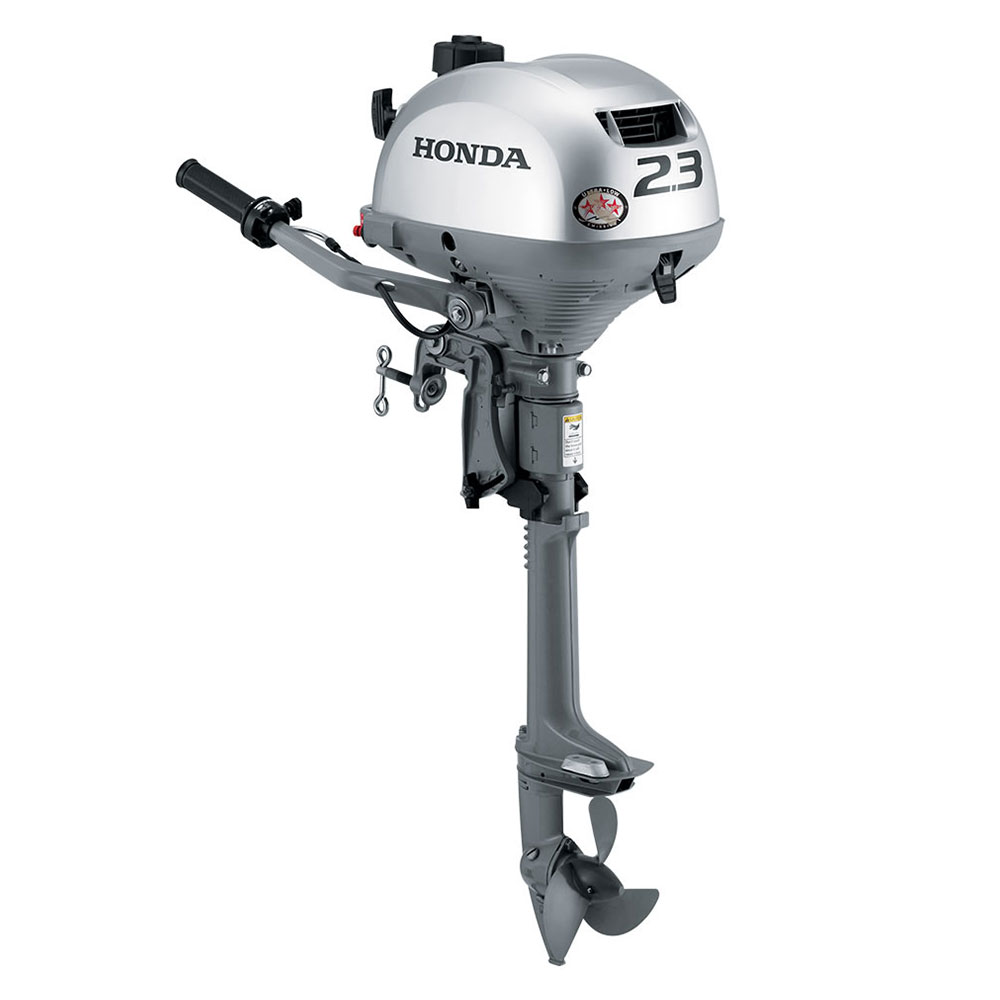

Honda 2.3BP Outboard

One of the world’s lightest four-stroke outboards. The BF2.3 is so light, it rivals many two-stroke 2HP engines and electric motors, without the battery!

But just because it’s lightweight doesn’t mean we cut back on the power. The BF2.3 features 15% more power over its predecessor. Plus we added a 12% larger internal gas tank, which provides for about one hour of operation at wide open throttle. It’s a technologically advanced design that gives you power and performance – without sacrificing portability.

Download the Honda Outboard Brochure

Type 4-Stroke OHV, 1 Cylinder/2 Valves
Displacement 57.2 cc (3.49 cubic in)
Bore & Stroke 45 mm x 36 mm (1.8 x 1.4 inches)
Full Throttle RPM Range 5,000-6,000 RPM
Rated Power 2.3HP (1.7 kW)
Cooling System Forced Air
Ignition System Transistorized
CARB Rating (California) 3-STAR, ultra low emission
Fuel Unleaded 86 octane
Fuel Tank Capacity .29 US gal (1.1L)
Starting System Recoil
Exhaust Under Water, Above Propeller
Lubrication Oil Slinger System
Trim Range 4-Stage: 5°, 10°,15°, 20°
Tilt Range 75°

Drive

Gear Ratio 2.42:1
Steering Angle 360° pivot
Propeller 3-Blade Plastic
Diameter x Pitch 7.25 x 4.75 inches

Dimensions

Overall Width 285 mm / 11.2 in

Transom Height

S Type 418 mm / 16.5 in
L Type 571 mm / 22.5 in

Dry Weight

S-Type 13 kg / 29.5 lbs
L-Type 14 kg / 31 lbs
